Time to fix the lights and put together my dash again!
First I wanted to renew the green glasses on the indicator lights.
They were letting go a bit so they had to go...
But where do you find new glasses? I know!
I cut them out of a cheap-ass folder. Perfect for the occasion ;-)
Ready to be glued on.
Voila. Easy peasy.
Next up the more serious part. First I need to remove the old crappy printed circuit.
Not all the lights can be replaced. I bought a led kit online which replaces most lights except for warning lights. But I had to take them all out anyway. Just incase I made sure I knew where they came from. I also removed the voltage regulator (square thing at the top right).
Right in the middle are 2 larger screws that sit on threaded rods attached to the fuel meter. Unfortunately one of the rods wasn't sticking in the meter so well anymore and spun around when I tried to get the nut off. Grrrr. Now I have to remove the whole back-side etc...
After a lot of careful screwing around I managed to get it out.
There is the reason the rod was moving along with the spinning nut. The plastic around it was cracked :-(
But I glued it back on and tested it by putting a bit of voltage on it carefully so make the meter move. And it worked! Nice!
Time to start putting the cluster back together.
First I put the fuel meter back in carefully and tested it one more time to make sure it was still working fine, which it was :-)
Then I put the new printed circuit on put in the new lights and the few old ones. Looking good eh?
Then I took it to my car and put it back in. You have to fiddle a bit to get the electric connector in. Also, make sure you hear a click when putting the speedometer cable back on, otherwise it's not connected properly.
I tested the indicators and... Bingo! I got indicator lights again :-)
Finally I put back the instrument panel and my car looks nice again with working indicator lights! :-)
A blog about finding and keeping my 1973 Mustang Grande (V8 - 351C 2V). Produced on July 6, 1973. Sold in Florida, USA.
Sunday, November 2, 2014
Tuesday, October 21, 2014
The new battery clamps
While I'm in the process of fixing my instrument cluster, I have also replaced the positive battery cable (because I turned the battery around and the old one was too short) and hooked up new battery clamps.
Nice little improvement :-)
Nice little improvement :-)
Tuesday, September 16, 2014
Taking out the instrument cluster
So, recently my car passed its bi-annual checkup (required by law in The Netherlands) without any problems. However, my turning indicators don't work anymore which is very annoying because after making a turn I can't see if my indicator is still on and thanks to the lovely sound of the 351C, I can't hear the clicking of the relay either. So I figured I'd spend a bit more time in fixing that quickly.
I'm slowly starting to realise that my life is not a car show on Discovery and that there is actually no such thing as "quickly" when it comes to doing my own repairs ;-)
So above there's a picture of the instrument panel. Behind it is the instrument cluster. Let's try to open it...
Unscrewing 4 screws to losen the panel is easy however, you do need to remove the side panel as well. Depending on how far your car door will open, this is a pain sometimes because you can't reach the screw very well.
When the panels are removed, you get to see the actual instrument cluster. This is also held in place by four screws, easily accessible.
What's not very easy is disconnecting the wiring and the speedometer cable. Not because they're so stuck but because they are difficult to reach.Also, the alternator light was not just a light screwed in to the back as all the others, but it's attached to a big cable running behind. So do not rip it out once the big connector and the speedometer cable have been disconnected because you're not done yet! Disconnect the alternator light seperately!
And then you find out the steering wheel needs to be removed to take the cluser home for the neccesary repairs...
So I screwed back the losened cluster in order to remove the wheel.
Unscrew the horn-pad from behind.
The steering wheel didn't let go. I was advised to just hit it from behind firmly but after 3 attempts I gave up because it felt wrong. It's not how I like to work so I ordered a steering wheel-puller. This made the job easy.
I also removed some trim around the steering column for better access.
And then I had a big hole in my dash... On the right side you can see the electric connector and the speedometer cable.
This is the seperately wired alternator light. I have no idea why it's wired seperately as the printed circuit has a place for a normal light fitting...
One instrument cluster removed, thank you very much.
I took the instrument cluster home to work on. Here you can see the old printed circuit. I found out that the light for the fuel gauge is simply missing... On the right you can see the hole where the alternator light goes.
The reason my indicator light wasn't working. I have ordered new parts. Now we wait...
To be continued.
I'm slowly starting to realise that my life is not a car show on Discovery and that there is actually no such thing as "quickly" when it comes to doing my own repairs ;-)
So above there's a picture of the instrument panel. Behind it is the instrument cluster. Let's try to open it...
Unscrewing 4 screws to losen the panel is easy however, you do need to remove the side panel as well. Depending on how far your car door will open, this is a pain sometimes because you can't reach the screw very well.
When the panels are removed, you get to see the actual instrument cluster. This is also held in place by four screws, easily accessible.
What's not very easy is disconnecting the wiring and the speedometer cable. Not because they're so stuck but because they are difficult to reach.Also, the alternator light was not just a light screwed in to the back as all the others, but it's attached to a big cable running behind. So do not rip it out once the big connector and the speedometer cable have been disconnected because you're not done yet! Disconnect the alternator light seperately!
And then you find out the steering wheel needs to be removed to take the cluser home for the neccesary repairs...
So I screwed back the losened cluster in order to remove the wheel.
Unscrew the horn-pad from behind.
The steering wheel didn't let go. I was advised to just hit it from behind firmly but after 3 attempts I gave up because it felt wrong. It's not how I like to work so I ordered a steering wheel-puller. This made the job easy.
I also removed some trim around the steering column for better access.
And then I had a big hole in my dash... On the right side you can see the electric connector and the speedometer cable.
This is the seperately wired alternator light. I have no idea why it's wired seperately as the printed circuit has a place for a normal light fitting...
One instrument cluster removed, thank you very much.
I took the instrument cluster home to work on. Here you can see the old printed circuit. I found out that the light for the fuel gauge is simply missing... On the right you can see the hole where the alternator light goes.
The reason my indicator light wasn't working. I have ordered new parts. Now we wait...
To be continued.
Saturday, July 5, 2014
The before and after
Just to show the difference a little bit clearer...
This was the engine bay with all the LPG crap in it still...

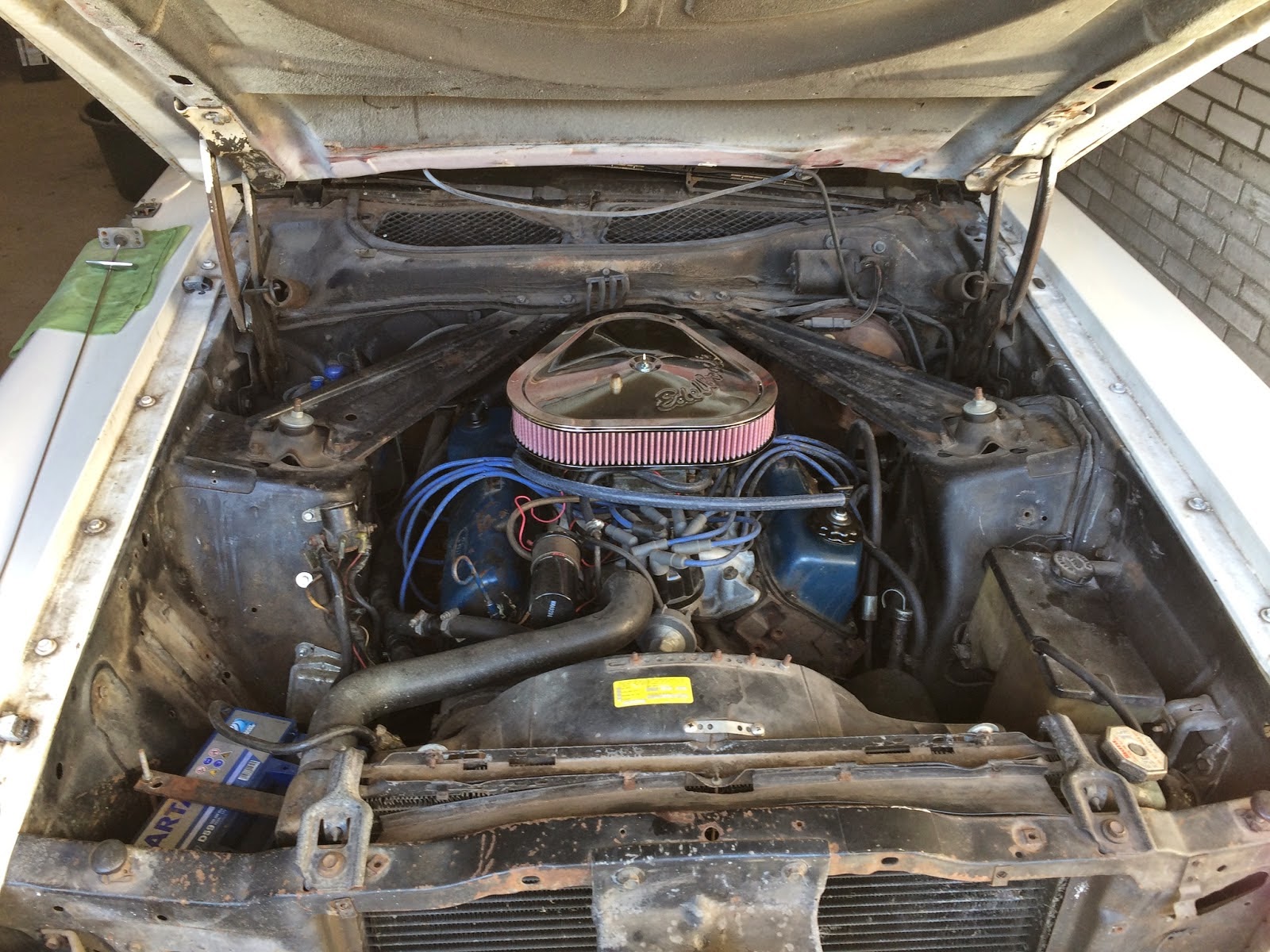

And this is after I removed it all.
Quite a difference I'd say :-)
This was the engine bay with all the LPG crap in it still...
And this is after I removed it all.
Quite a difference I'd say :-)
Thursday, July 3, 2014
Finishing LPG removal / fixing the PCV system
Tonight I fully finished removing the LPG kit that was in my car before. The only thing left was to connect the 2 PCV hoses. These photos show the result of this in a couple of pictures.
The little cap sitting on top of the air cleaner used to seal off the PCV port on my carb. I forgot to put it away before making the pictures ;-)
The valve cover I replaced and the 2 hoses I hooked up.
And then it was time to see if the engine would still run. It hadn't run for a few months so it didn't start right away but eventually... it did! :-)
See for yourself:
The little cap sitting on top of the air cleaner used to seal off the PCV port on my carb. I forgot to put it away before making the pictures ;-)
The valve cover I replaced and the 2 hoses I hooked up.
And then it was time to see if the engine would still run. It hadn't run for a few months so it didn't start right away but eventually... it did! :-)
See for yourself:
Sunday, June 29, 2014
Removing and re-installing a valve cover
In my attempts to remove the tube (PCV to air-cleaner) sticking out at the back of the valve cover I was a bit rough and actually broke it. Since I wanted to take it out without hard bits of plastic falling in between the rockers etc. I decided to remove the whole cover so that I could replace it. Since I had never opened up an engine like this, the seemed a bit daunting. But hey, I gotta start some where :-)
The screws came out easy but the cover was quite stuck to the cork gasket. Eventually I managed to get it off but most of the gasket was still stuck to the engine. Great...
After screwing around with a stanley knife to scrape the cork off a friend told me about a special tool used to scrape off the remaining bits of the gasket. It's actually called a gasket remover. Wow...
So the next day I came back with the gasket remover and within 30 minutes I had cleaned all the remaining bits of gasket off the engine. I made very sure that no bits of cork fell in to the engine.
I also cleaned the valve cover and ripped out the old hose connector.
And replaced it with a new one.
Then I had to put in a new gasket and attach the cover again, too. Because everything was falling off (the gasket is really floppy) I put bits of metal wire in the screw holes to keep the gasket in place.
The wires also kept the cover in place. I then removed one piece of wire at a time, replacing it with a screw. Eventually I got the whole cover firmly attached again.
This was a nice little job and the first time I saw some of the inside of the engine. Nice!
The screws came out easy but the cover was quite stuck to the cork gasket. Eventually I managed to get it off but most of the gasket was still stuck to the engine. Great...
After screwing around with a stanley knife to scrape the cork off a friend told me about a special tool used to scrape off the remaining bits of the gasket. It's actually called a gasket remover. Wow...
So the next day I came back with the gasket remover and within 30 minutes I had cleaned all the remaining bits of gasket off the engine. I made very sure that no bits of cork fell in to the engine.
I also cleaned the valve cover and ripped out the old hose connector.
And replaced it with a new one.
Then I had to put in a new gasket and attach the cover again, too. Because everything was falling off (the gasket is really floppy) I put bits of metal wire in the screw holes to keep the gasket in place.
The wires also kept the cover in place. I then removed one piece of wire at a time, replacing it with a screw. Eventually I got the whole cover firmly attached again.
This was a nice little job and the first time I saw some of the inside of the engine. Nice!
Wednesday, January 29, 2014
Removing LPG parts / installing a new air cleaner
The ugliest part of my LPG kit is the air cleaner. It also sits on top of the carb and I need to know the type so the air cleaner needs to go. And because the fuel valve (also part of the LPG kit) is screwed to the air cleaner, it's going as well!
Above you see the "before" picture. U-G-L-Y...
I removed the air cleaner and finally managed to figure out what carburetor I got: A Holley 80457-2. Nice!
It's gonna need a bath at some point though but for now I'm leaving it in place. One thing I wasn't happy about is that they removed the choke plate when installing the LPG, an unpleasant surprise...
Then all I needed to do was replacing the fuel hose and valve with a new bit of hose.
And why not? I mounted my new air cleaner. It fits perfectly!
Doesn't this look a hell of a lot better than before?
Above you see the "before" picture. U-G-L-Y...
I removed the air cleaner and finally managed to figure out what carburetor I got: A Holley 80457-2. Nice!
It's gonna need a bath at some point though but for now I'm leaving it in place. One thing I wasn't happy about is that they removed the choke plate when installing the LPG, an unpleasant surprise...
Then all I needed to do was replacing the fuel hose and valve with a new bit of hose.
And why not? I mounted my new air cleaner. It fits perfectly!
Doesn't this look a hell of a lot better than before?
Saturday, January 18, 2014
Removing my LPG tank
Today was a good day to remove my LPG tank. This was a job that made me very nervous since it had to do with volatile and flammable gas. But the weather was great and I was getting help from my best friend and good tips from some of the folks over at the Dutch Mustang & Ford Forum.
I drove the car outside as that is safer than doing this job indoors.
Mainly you deal with 2 (pipe)lines. The one from the filler port to the tank and the one from the tank to the engine. Both lines can be under pressure depending on wether or not they are closed by a valve on either end.
My biggest fear were malfunctioning valves, especially those on the tank. I thought the valves on the line to the engine would be the most trouble-free so I started with that one.
I rather released the gas from the engine-bay, which I did. This hissed for about 5-10 minutes and then it stopped. Good start!
In the trunk I first removed the air-hose from the tank and also I cut electricity to the electric valve.
I then disconnected the line to the engine from the tank. The wiring had to be pulled back out of the seal. Since I had released the pressured gas this was easy.
Now it was time for my new super sexy red gloves. Because they are made for working with liquids, they are also very suitable for poking your nose! ;-)
I put on the gloves just in case liquid LPG would spray out. This is quite cold you see.

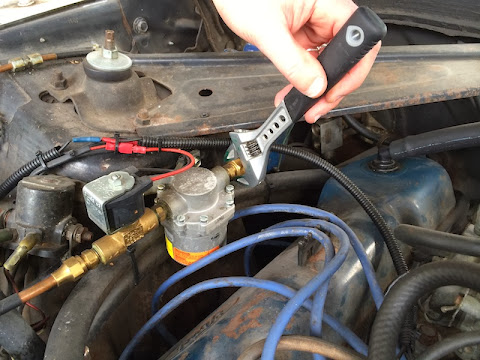

Now the scary bit: disconnecting the filler line. This has a mechanical valve on the tank that not always closes properly because sometimes the line remains pressurised after filling the tank up.
To loosen up the valve I whacked it with a hammer a few times (not toooo hard!).
It was fixed very tight and I had to use quite some force to loosen it but in the end it gave way. This was a bit of an anti-climax as it only hissed for a few seconds and that's it. So thankfully I had a working valve and not a lot of pressure remaining in the pipeline :-)
Here is the whole tank disconnected. Yay! This took maybe 30-45 minutes, but only because we worked slow and very careful.
Since everything went so quick we decided to also remove the bracket and later we even removed all the pipelines.
One tank. And only some LPG parts left under the bonnet.
Great stuff!
I drove the car outside as that is safer than doing this job indoors.
Mainly you deal with 2 (pipe)lines. The one from the filler port to the tank and the one from the tank to the engine. Both lines can be under pressure depending on wether or not they are closed by a valve on either end.
>>>>>>>>>> Don't forget to disconnect your battery <<<<<<<<<<
My biggest fear were malfunctioning valves, especially those on the tank. I thought the valves on the line to the engine would be the most trouble-free so I started with that one.
I rather released the gas from the engine-bay, which I did. This hissed for about 5-10 minutes and then it stopped. Good start!
In the trunk I first removed the air-hose from the tank and also I cut electricity to the electric valve.
I then disconnected the line to the engine from the tank. The wiring had to be pulled back out of the seal. Since I had released the pressured gas this was easy.
Now it was time for my new super sexy red gloves. Because they are made for working with liquids, they are also very suitable for poking your nose! ;-)
I put on the gloves just in case liquid LPG would spray out. This is quite cold you see.
Now the scary bit: disconnecting the filler line. This has a mechanical valve on the tank that not always closes properly because sometimes the line remains pressurised after filling the tank up.
To loosen up the valve I whacked it with a hammer a few times (not toooo hard!).
It was fixed very tight and I had to use quite some force to loosen it but in the end it gave way. This was a bit of an anti-climax as it only hissed for a few seconds and that's it. So thankfully I had a working valve and not a lot of pressure remaining in the pipeline :-)
Here is the whole tank disconnected. Yay! This took maybe 30-45 minutes, but only because we worked slow and very careful.
Since everything went so quick we decided to also remove the bracket and later we even removed all the pipelines.
One tank. And only some LPG parts left under the bonnet.
Great stuff!
